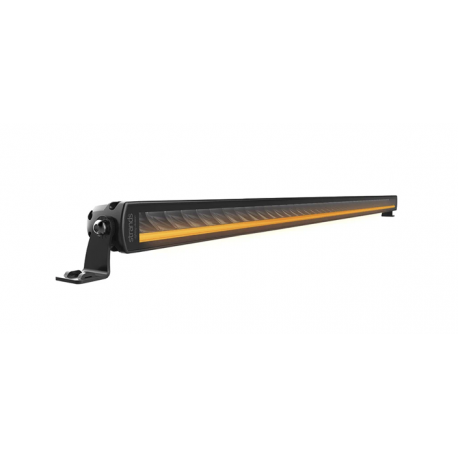

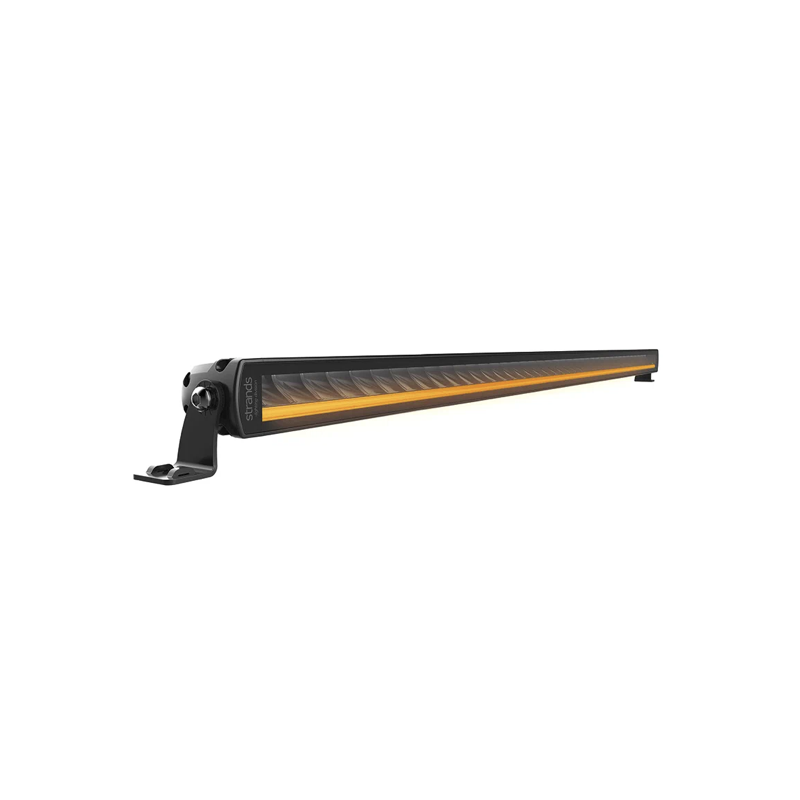

SIBERIA SINGLE ROW 42" LED BAR

Référence 5809173

État : Neuf

Ce produit n'est plus en stock

Feu de position : Blanc / Orange

TYPE OF LAMP LED
VOLTAGE (V DC) 10-40V DC
CONSUMPTION (W) 12V HIGH BEAM: 199
WHITE POSITION LIGHT: 10
AMBER POSITION LIGHT: 25
CONSUMPTION (W) 24V HIGH BEAM: 199
WHITE POSITION LIGHT: 10
AMBER POSITION LIGHT: 25
THEORETICAL LUMEN 16000
ACTUAL LUMEN 9472
1 LUX @ M 533
IP-CLASS IP67/69K
COLOUR HOUSING BLACK
COLOUR LENS CLEAR
COLOUR LED´S WHITE
BEAM PATTERN COMBO
POSITION LIGHT YES. WHITE AND AMBER
CONNECTION CABLE
CABLE LENGTH (MM) 2500
MATERIAL BRACKET STAINLESS STEEL
MATERIAL HOUSING/CHASSI ALUMINIUM
MATERIAL LENS POLYCARBONATE
LENGTH (MM) 1065.6
DEPTH (MM) 55.5
HEIGHT (MM) 45
HEIGHT INCLUDING BRACKET (MM) 65
OPERATING TEMPERATURE -20°C – +45°C
ADR-APPROVED NO
E-APPROVED YES
ACCORDING TO REGULATION ECE R112
REFERENCE NUMBER 50
EMC ECE R10
